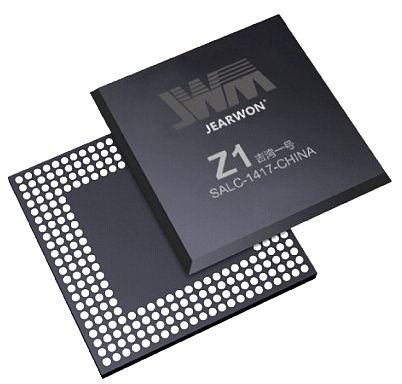

Jearwon Z1 CPU
Jearwon Z1 Features
CPU
· 32bits RSIC processor
Imaging performance
· RemoteFX: up to 26Mpps RDP: 7M Bytes
Video
· 24bits parallel interface (RGB 888), max resolution(1920x1080)
LAN
· MII,1x10/100Mbits/s Fast Ethernet
Audio
· I2S,24bits audio DAC@44.1KHz,48KHz,stereo line out
Memory
· 32bits DDR Controller
Flash
· SPI
Peripheral I/O
· Uart、2xPS2

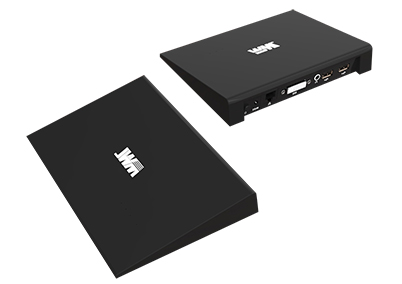

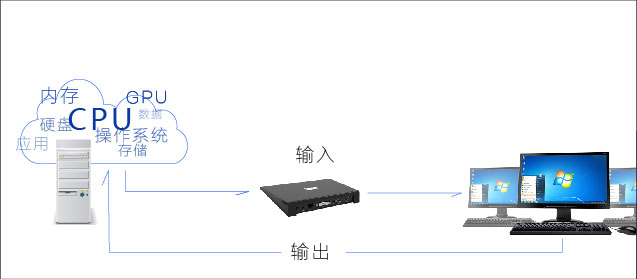

Jearwon Z1 CPU application--Zero Clients


Product Specifications
Processor
· Jearwon Z1 SoC
Protocols
· RemoteFX /RDP
Imaging performance
· RemoteFX:up to 26 Mpps
· RDP:7M Bytes
Max resolution
· 1920x1080

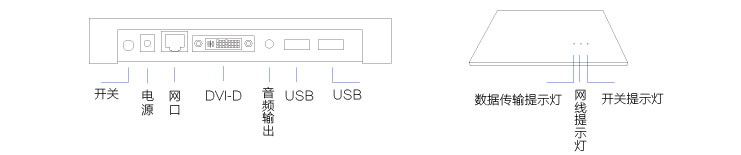

Video output port
· DVI
Communications
· Fast Ethernet 10/100 Base-T (RJ45)
USB Device
· Mouse & keyboard
Audio
· Headphone
Power
· 5W,5V DC
Dimensions (W x D x H)
· 170mm x 133mm x 29mm

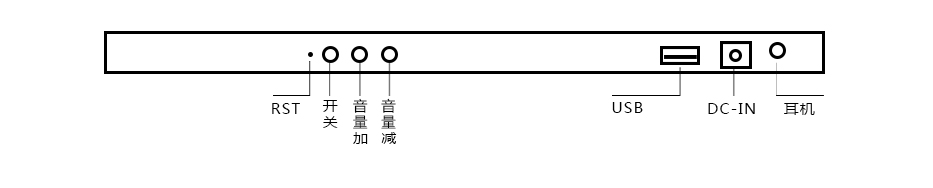

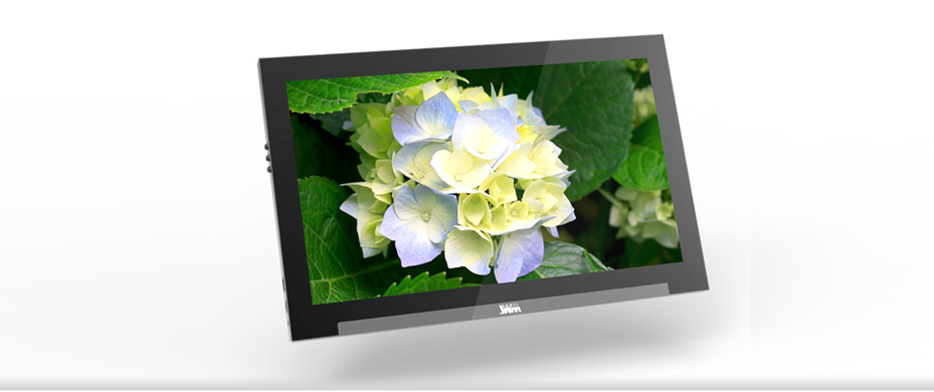

Jearwon Z1 CPU application--Zero PAD
Product Specifications
Processor
· Jearwon Z1 SoC
Protocols
· RemoteFX /RDP
Screen
· 15.6-inch & max resolution 1920*1080
· multi point-touch capacitive screen
Network
· fast ethernet 10/100base-t(RJ45) & wifi 2.4G 802.11b/g/n
USB Device
· mouse&keyboard
Audio
· 8Ω 2W Speaker
· 3.5mm Headphones
Power
· DC +12V
· Battery 4000mAh with up to 4 hours of battery life
Dimensions (L x W x H)
· 382mm*245mm*14mm
